LED Outdoor SMD modular Floodlights

Home/Outdoor LED Floodlights 100W - 1200W/LED Outdoor SMD modular Floodlights
LED Sports Field Lighting for football field
High mast light 200W for tennis court
LED-sports-floodlights-300W
LED Outdoor SMD modular Floodlights
High mast flood light 1000W

LED Outdoor SMD modular Floodlights

In order to meet the market demand for higher standards of SMD floodlights, VEGA floodlight series combined with the highest quality components for efficiency, and excellent build quality for reliability.

  • Multiple beam angle and color temperature available for flexible design options
  • Patented 4D heat sink design ensured the long lifespan over 50,000hrs
  • Low maintenance, light decay less than 5% within 5 years
  • Universal mounting brackets and angle adjustment dial help easy installation
  • High power can be customized
INQUIRY THIS PRODUCT
Category: Tags: , , , ,

Description

Compared with the traditional floodlight, the VEGA floodlight series is more versatile. And it is designed for a wide range of applications. The VEGA floodlight series offers a large range of wattages and various beam angles to meet different requirements of different projects

VEGA SERIES 100W 1200W LED Sports Floodlight

What Is The Best LED Outdoor Flood light?

Perfect-heat-sink-design-for-led-sports-light

Perfect Heat Sink Design

4D air convection heat sink, fast cooling ensured the long lifetime over 50,000hrs, stable performance and low maintenance to save your money.

And the air convection housing design can also reduce the wind resistance. So that you no need to be worried about the wind-resistance coefficient when you use for it the high mast.

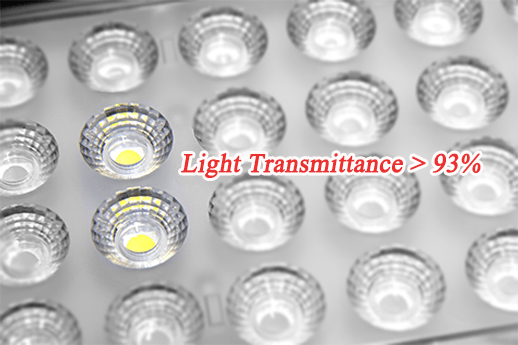

Optical Lens

High transmittance special lens, UV protection, and corrosion resistance. Symmetric and Asymmetric beam angles are available to meet different projects’ requirements.

LED Outdoor SMD modular Floodlights
LED Outdoor SMD modular Floodlights

Rotatable Strong Bracket

Adapted folding design for the bracket, compared to the common bracket in the market, VEGA floodlight series is more stronger and safer for high mast using. And angle adjustment dial makes the installation a breeze.

Specification Of The Best LED Outdoor Flood Light

Power:100W
Replaces:200W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:15000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):313 x 395 x 125mm
Net Weight:7kg
Power:200W
Replaces:400W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:30000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):432 x 395 x 125mm
Net Weight:10.5kg
Power:300W
Replaces:600W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:45000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):546 x 395 x 125mm
Net Weight:12kg
Power:400W
Replaces:800W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:60000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):645 x 432 x 125mm
Net Weight:15kg
Power:500W
Replaces:1000W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:75000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):645 x 432 x 125mm
Net Weight:15kg
Power:600W
Replaces:1200W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:90000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):645 x 546 x 125mm
Net Weight:20kg
Power:800W
Replaces:1500W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:120000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):715 x 645 x 125mm
Net Weight:25kg
Power:1000W
Replaces:2000W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:150000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):715 x 645 x 125mm
Net Weight:25kg
Power:1200W
Replaces:2000W Metal Halide
Driver:Mean Well / Inventronics
Light Source:Philips Lumileds 5050
Input Voltage:90-305 V [D] | 347-480V [HV]
Colour Rendering Index:Ra＞80
Lumens:180000 • LM/W: 150
Beam Angle:15°/30°/60°/40×80°/ 90×135°
Colour Temperature:2700K-6500K
Working Temperature:-30°C ~ 50°C
IP Rating:IP66
IK Rating:IK10
Warranty:5 years
Dimensions (W x H x D):834 x 645 x 125mm
Net Weight:31kg

Custom LED Light

HYH Lighting provides customized services. Custom both High Power & Low Power LED Lights, which means you can choose the power, size, power, weight, driver, chips, etc. If you have any projects need some special LED light, welcome to contact us for a design. Or if you have your own idea about the new design, we can also do as your requirements.

High power led sports flood light

Application Of The LED Outdoor Flood Light:

From local sports grounds to CCTV Stadiums, like the badminton, volleyball, baseball, tennis court, football field, basketball stadium, cricket stadium, golf course, racecourse, and also large square, airport, horse, mining site, parking lots, seaport, mobile light tower, etc. HYH Lighting have you covered.

LED Outdoor Sports/ High Mast Lighting Design

HYH Lighting has always been happy to solve problems for customers. If you are looking for an affordable and high quality LED outdoor sports lighting or LED high mast light, welcome to contact us for a suitable lighting solution and cost estimation.
